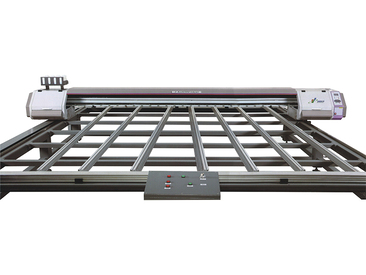

Uses the Japanese high precision piezoelectric nozzle,through the computer control,digital information, the need to screen the image of jet printed on white gauze of photosensitive sex coating,forming a layer of opaque black film, then the whole light exposure, development and curing can obtain production with the screen.
Image color Ink jet yam making machine to print the Exposure enhancement curing
separation image on a network
Technical parameters
|
Product model |
XC32380 |
XC23300 |
|
Equipment size |
4150×4550×1100（mm） |
3510×3500×1100（mm） |
|
Net frame size |
4000×3200（mm） |
3200×2250(mm) |
|
Biggest pattern size |
3800×3000（mm） |
2200×3000(mm) |
|
Nozzle number |
EPSON seventh generation 1 |
|
|
System network speed |
6min/㎡ |
|
|
Making precision |
720dpi |
|
|
Power supply |
AC220V 2KW 50-60HZ |
|
|
Temperature and humidity |
Temperature20-30℃,Humidity40-80% |
|
Product advantage
●It is high precision
Using EPSON seventh generation high-precision ink-jet printer,spewing graph edge clear,smooth,no burr phenomenon.Have the best non-trace fault-tolerant feather technology,make the picture smooth transtion,there isno PASS.To meet the demand of the system of high precision moire and fine line network.
●The production cost is low
Using direct ink-jet system network,saves film,reducing the system cost.
● Easy to operate
Humanized control flat,simple software to print control interface,the operation staff be clear at a glance ,simple operation process,but also saves the previous film bag piece of many complicated operation.
|
