Semiconductor laser exposure system, referred to as LD blue screen machine. It uses semiconductor laser by low temperature curing glue and screen frame exposure to paint under the control of the computer, the light irradiation part of pattern formation, instantaneous glue curing, without light irradiation part can be washed out, to prepare the printing screen.
It does not need to pass through the media such as film, ink, wax and so on, but also different from the laser engraving machine. It is one of the most advanced printing equipment in the world.
First of all, the semiconductor laser wave length, so the light class after focusing on small diameter, fine pattern formation; secondly, the semiconductor laser has the advantages of small volume, multiple light can work at the same time, the network speed is faster; third, the semiconductor laser with low energy consumption, long service life and low cost.
Image color separation Blu-ray billet making machine image exposure to the Net frame Enhancement curing the finished product
Technical parameters
|
Product model |

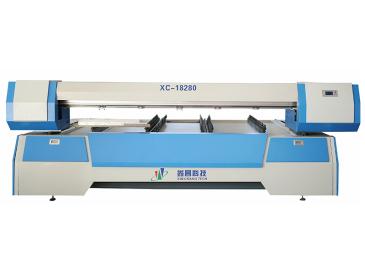

XC18280 |
XC36380 |
|
Equipment size |
4050×3100×1350 (mm) |
5200×4350×1350 (mm) |
|
Maximum imaging width |
1600×2600(mm) |
3400×3600(mm) |
|
Max frame size |
1700×2700(mm) |
3500×3700(mm) |
|
Laser |
32/48（Selectable） |
|
|
System network speed |
7min/㎡ |
|
|
Making precision |
360/720dpi |
|
|
Power supply |
AC380V 2.5KW 50-60HZ |
|
|
Temperature |
20-30℃ |
|
Product advantage
● Japan imported laser,light source to provide stable and reliable work.
● High performance and high precision optical focusing system,improving the system of network precision.
● Using multiple independent sourcesdesign,greatly improve the speed。
● The TEC temperature control system based on digital temperature sensor, adopt the whole bridge(H bridge) efficient synchronous rectifier control.
● Low pattern digital output direct exposure,can accurately reflect the manuscript,eliminates the film exposure of network loss and packages were pick up version of the problem.
● The production cost is low
Use direct exposure, save the cost of film ,ink or wax,true no consumables system network.
● Easy to operate
Humanized control flat, simple software to print control interface,the operation staff be clear at a glance, simple operation process,but also saves the previous film bag piece of many complicated operation.
|
