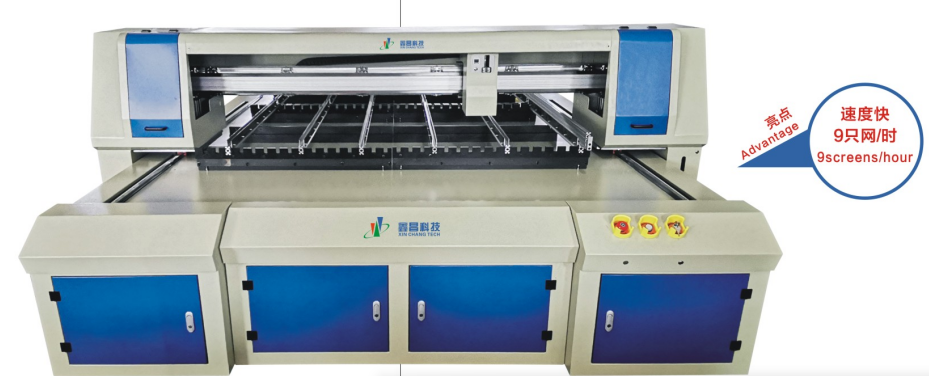

Through the computer control,digital information, the need to screen the image of jet printed on white gauze of photosensitive sex coating,forming a layer of opaque black film, then the whole light exposure, development and curing can obtain production with the screen.
Technical parameters
|
Product model |
XC20250 |
XC20300 |
|
Equipment size |
3050×3350×1400（mm） |
3550×3350×1400（mm） |
|
Max frame size |
2000×2500（mm） |
2000×3000(mm) |
|
Max pattern size |
1800×2400（mm） |
1800×2800(mm) |
|
Nozzle |
KONICA （1024） one set |
|
|
System network speed |
2min/㎡ |
|
|
Making precision |
720dpi/720dpi 1440/720dpi |
|
|
Power supply |
AC380V 2.5KW 50-60HZ |
|
|
Temperature and humidity |
20-30℃,40-80% |
|
Product advantage
●It is high precision
Adopt Konica high-precision industrial nozzle ,spewing graph edge clear,smooth,no burr phenomenon.Have the best non-trace fault-tolerant feather technology,make the picture smooth transtion,there isno PASS.To meet the demand of the system of high precision moire and fine line network.
●The production cost is low
Using direct ink-jet system network,saves film,reducing the system cost.
● Easy to operate
Humanized control flat,simple software to print control interface,the operation staff be clear at a glance ,simple operation process,but also saves the previous film bag piece of many complicated operation.
|
